Product Details

Description

A plaster-paint spray unit for industrial use. The ideal solution for high intensity jobs.

The device was built on the base of a 60-litre tank that can fit 90-120 kg of mass. The tank has a specially formed bottom that makes it easier for the material to flow down. The set includes three guns: paint, plaster and a plaster finish gun. Each one makes it possible to spray substances of various densities.

A specialist finish gun allows for the spraying of plastering masses with a flat stream. A professional plaster gun makes it easy to apply structural plasters and ensures a very good spread of the grains.
The spray paint gun allows for precise and fast covering of a surface with emulsion paints or undercoats.
Each of the spray guns has the function of cutting off the flow of material and air with the help of the trigger. It is an extraordinarily comfortable solution which additionally prevents unwanted lumps on the wall surface.

The length of the technical hoses is 10 metres.

APPLICATION

Spray application of mineral, acrylic, silicate, and silicone plasters, and also other structural sand textured plasters
Cement-lime rendering
Spray application of finishes
Spray application of glue onto mesh
Spray application of primer contact
Painting walls
Priming walls
Impregnation
Spray application of liquid wallpaper
Spraying of fire retardants

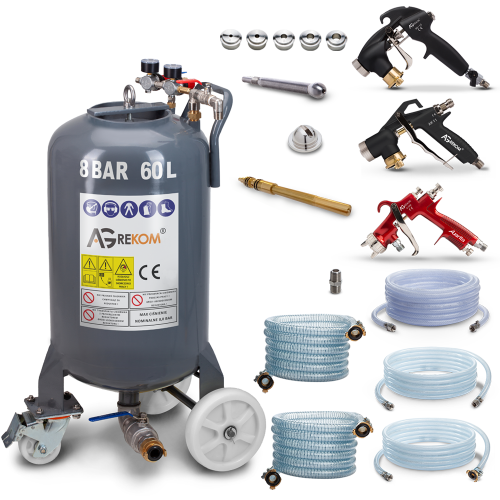

THE SET INCLUDES:

60 L tank with enlarged bottom outlet (1,5") and a large filler (90-120 kg of mass)

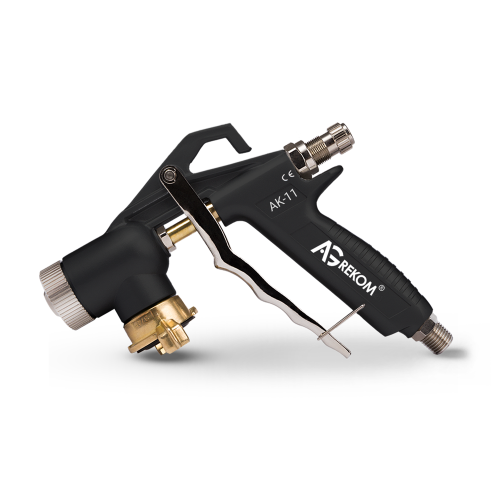

Professional plaster gun
Set of nozzles: 4, 6, 8, 10, and 12 mm
Professional finish gun
Flat stream nozzle
Additional 3,0 mm needle that increases the output capabilities of the professional plaster gun by 30%
Additional 3,0 mm needle with air flow shut-off with spray gun trigger that increases the output capabilities of the professional finish gun by 30%
Professional emulsion spray gun
Double, metal pressure regulator
Spray gun range: 10 metres

More Information

More Information
For use	professional
Tank capacity	60 litres
Working pressure	8 BAR

Product Showcase

TECHNICAL DETAILS

Tank comparison


Capacity	30 kg	32 kg	90-120 kg	120-160 kg	170-220 kg
Maximum pressure	4,9 BAR	8 BAR	8 BAR	8 BAR	12,5 BAR
Shape of the bottom
Outlet diameter	1"	1"	1,5"	1,5"	1,5"
Outlet material	brass	stainless steel	stainless steel	stainless steel	stainless steel
Maximum material feed range	10 m	15 m	15 m	15 m	15 m
Diameter of the filling opening	9,8 cm	9,8 cm	21 cm	24 cm	24 cm
Wheel diameter	17 cm	17 cm	19 cm	19 cm	19 cm
Wheel lock	not	yes	yes	yes	yes
Tank dimensions with wheels	22 x 65 cm	20 x 70 cm	36 x 80 cm	40 x 95 cm	48 x 100 cm

Plaster guns - comparison


Use of	amateur plasterer	semi-professional plasterer	professional plasterer	industrial plasterer
Spray width	20 cm	30 cm	40 cm	50 cm
Performance	100%	150%	250%	350%
Air lock when the gun trigger is released	not	not	yes	yes
Interchangeable firing pin	not	yes	yes	yes
Firing pin material	brass	brass	stainless steel	stainless steel
Nozzle size (mm)	4, 6, 8	4, 6, 8	4, 6, 8, 10, 12	4, 6, 8, 10, 12 4, 6, 8 AIR PRO
Nozzle material	nickel-plated steel	nickel-plated steel	stainless steel	stainless steel
Flat jet nozzle possible	not	not	not	not

paint guns - comparison


Use of	amateur	semi-professional	professional	Industrial
Spray width	20 cm	40 cm	50 cm	55 cm
Spray width adjustment	not	yes	yes	yes
Air flow control	not	yes	yes	yes
Firing pin material	brass	stainless steel	stainless steel	stainless steel
Interchangeable nozzle	not	not	yes - 1,3 mm	yes - 3,0 mm
Interchangeable firing pin	not	yes	yes - 1,3 mm	yes - 3,0 mm
Dusting	large	Medium	small	negligible
Atomisation	small	Medium	large	very large
