Product Details

Description

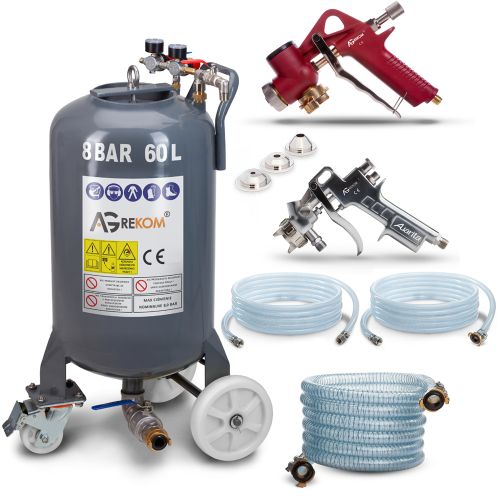

The plaster spray unit was designed on the base of a 60-litre tank with an exhaust on the bottom. The tank fits 90-120 kg of mass, which lets you work for a long time without the need to refill with the material often.

The set includes two spray guns designed for amateur spraying facade plasters and painting. The right choice of hoses makes it possible to work 5 metres away from the tank.

APPLICATION

Spray application of structural plasters (facade plasters like sand textured, mineral, silicone, silicate, and acrylic plasters)
Spraying of gypsum finish
Wall spackling (rendering)
Spraying glue onto mesh when insulating
Spray painting (also with dense emulsions)
Priming walls
Applying liquid wallpaper
Spraying of fire retardants
Impregnation

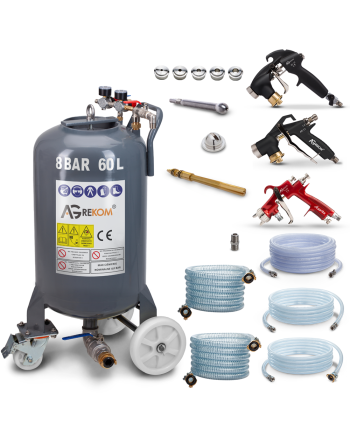

THE SET INCLUDES:

60-litre tank with a bottom outlet
Basic plaster gun
4, 6, 8 mm nozzles for plaster gun
Basic paint gun
5-metre spray gun hoses

More Information

More Information
For use	amateur
Tank capacity	60 litres
Working pressure	8 BAR

Product Showcase

TECHNICAL DETAILS

Tank comparison


Capacity	30 kg	32 kg	90-120 kg	120-160 kg	170-220 kg
Maximum pressure	4,9 BAR	8 BAR	8 BAR	8 BAR	12,5 BAR
Shape of the bottom
Outlet diameter	1"	1"	1,5"	1,5"	1,5"
Outlet material	brass	stainless steel	stainless steel	stainless steel	stainless steel
Maximum material feed range	10 m	15 m	15 m	15 m	15 m
Diameter of the filling opening	9,8 cm	9,8 cm	21 cm	24 cm	24 cm
Wheel diameter	17 cm	17 cm	19 cm	19 cm	19 cm
Wheel lock	not	yes	yes	yes	yes
Tank dimensions with wheels	22 x 65 cm	20 x 70 cm	36 x 80 cm	40 x 95 cm	48 x 100 cm

Plaster guns - comparison


Use of	amateur plasterer	semi-professional plasterer	professional plasterer	industrial plasterer
Spray width	20 cm	30 cm	40 cm	50 cm
Performance	100%	150%	250%	350%
Air lock when the gun trigger is released	not	not	yes	yes
Interchangeable firing pin	not	yes	yes	yes
Firing pin material	brass	brass	stainless steel	stainless steel
Nozzle size (mm)	4, 6, 8	4, 6, 8	4, 6, 8, 10, 12	4, 6, 8, 10, 12 4, 6, 8 AIR PRO
Nozzle material	nickel-plated steel	nickel-plated steel	stainless steel	stainless steel
Flat jet nozzle possible	not	not	not	not

paint guns - comparison


Use of	amateur	semi-professional	professional	Industrial
Spray width	20 cm	40 cm	50 cm	55 cm
Spray width adjustment	not	yes	yes	yes
Air flow control	not	yes	yes	yes
Firing pin material	brass	stainless steel	stainless steel	stainless steel
Interchangeable nozzle	not	not	yes - 1,3 mm	yes - 3,0 mm
Interchangeable firing pin	not	yes	yes - 1,3 mm	yes - 3,0 mm
Dusting	large	Medium	small	negligible
Atomisation	small	Medium	large	very large
