Product Details

Description

The plaster spray unit was designed on the base of a 60-litre tank with a bottom outlet.

The tank fits 90-120 kg of mass, which lets you work for a long time without the need to refill with the material often.
The set includes three professional guns. They allow for the completion of most jobs that are essential on each building site.

The AK10 plaster gun is suitable for spraying façade plaster, mesh adhesive and spackling.

The Ak11 finishing gun makes it possible to spray gypsum finish with a flat spray fan.

The paint gun allows for precise wall painting.

APPLICATION

Spray application of structural plasters (facade plasters like sand textured, mineral, silicone, silicate, and acrylic plasters)
Spraying of gypsum finish (flat stream)
Wall spackling (rendering)
Spraying glue onto mesh when insulating
Spray painting (also with dense emulsions)
Priming walls
Applying liquid wallpaper
Spraying of fire retardants
Impregnation

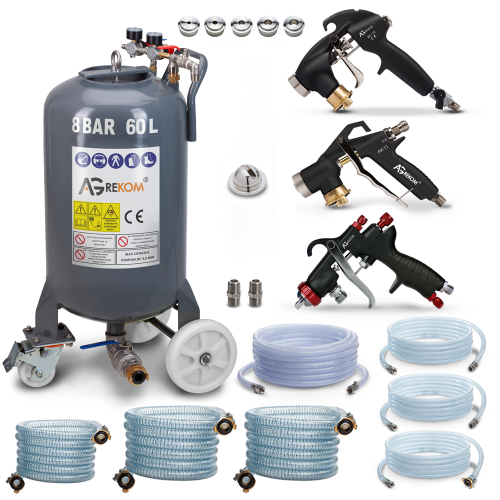

THE SET INCLUDES:

60 L tank with enlarged exhaust on the bottom (1,5)
Professional AK10 plaster gun
Professional AK11 finish gun
Flat nozzle for finishing
4, 6, 8, 10, and 12 mm nozzles for the plaster gun
Industrial gun for spray painting
Hose connector (2 pcs)
15-metre hoses for plaster guns (hose diameters: 19 and 25 mm)
15-metre hoses for the paint gun
Air hoses

More Information

More Information
For use	Industrial
Tank capacity	60 litres
Working pressure	8 BAR

Product Showcase

TECHNICAL DETAILS

Tank comparison


Capacity	30 kg	32 kg	90-120 kg	120-160 kg	170-220 kg
Maximum pressure	4,9 BAR	8 BAR	8 BAR	8 BAR	12,5 BAR
Shape of the bottom
Outlet diameter	1"	1"	1,5"	1,5"	1,5"
Outlet material	brass	stainless steel	stainless steel	stainless steel	stainless steel
Maximum material feed range	10 m	15 m	15 m	15 m	15 m
Diameter of the filling opening	9,8 cm	9,8 cm	21 cm	24 cm	24 cm
Wheel diameter	17 cm	17 cm	19 cm	19 cm	19 cm
Wheel lock	not	yes	yes	yes	yes
Tank dimensions with wheels	22 x 65 cm	20 x 70 cm	36 x 80 cm	40 x 95 cm	48 x 100 cm

Plaster guns - comparison


Use of	amateur plasterer	semi-professional plasterer	professional plasterer	industrial plasterer
Spray width	20 cm	30 cm	40 cm	50 cm
Performance	100%	150%	250%	350%
Air lock when the gun trigger is released	not	not	yes	yes
Interchangeable firing pin	not	yes	yes	yes
Firing pin material	brass	brass	stainless steel	stainless steel
Nozzle size (mm)	4, 6, 8	4, 6, 8	4, 6, 8, 10, 12	4, 6, 8, 10, 12 4, 6, 8 AIR PRO
Nozzle material	nickel-plated steel	nickel-plated steel	stainless steel	stainless steel
Flat jet nozzle possible	not	not	not	not

paint guns - comparison


Use of	amateur	semi-professional	professional	Industrial
Spray width	20 cm	40 cm	50 cm	55 cm
Spray width adjustment	not	yes	yes	yes
Air flow control	not	yes	yes	yes
Firing pin material	brass	stainless steel	stainless steel	stainless steel
Interchangeable nozzle	not	not	yes - 1,3 mm	yes - 3,0 mm
Interchangeable firing pin	not	yes	yes - 1,3 mm	yes - 3,0 mm
Dusting	large	Medium	small	negligible
Atomisation	small	Medium	large	very large
