PLASTER SPRAY UNITS

Plastering unit for professional use 20 l

As low as £789.00
Length of technical hoses
5 metres
10 metres
In stock

Product Details

Description

A plastering unit designed for professional use. It is ideal for all work on façades and for spray painting of walls.

The professional guns included in the set guarantee fast and efficient performance of works such as e.g. spray application of structural plasters (e.g. coloured plasters with grain), as well as spray painting. The guns are equipped with metal bodies and replaceable wear parts such as needles and nozzles. As a result, they guarantee long and trouble-free operation.

The plastering unit is based on a 20-litre stainless steel tank. The hopper-shaped tank base facilitates the flow of material. Large lockable wheels increase the unit's mobility.

The unit can operate at a pressure of 8 BAR.

The unit meets all EU standards and is certified in accordance with pressure and machine standards.






APPLICATION

  • Spray plastering (structural, mineral, silicone, silicate, acrylic plasters),
  • Spray painting (emulsion paints, primers),
  • Priming (also quartz primer to increase adhesion),
  • Spray application of gypsum plaster,
  • Spray application of fire protection,
  • Application of bitumen waterproofing of foundations,
  • Spraying adhesive on reinforcement mesh
  • Spray wallpaper

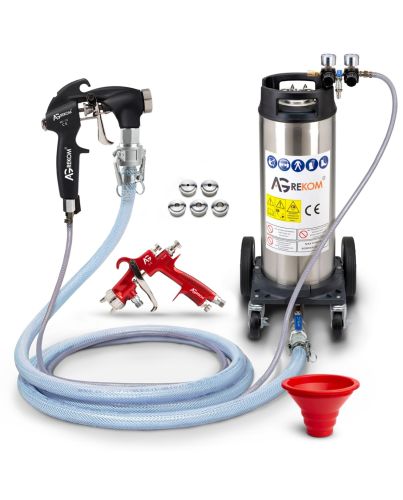

THE SET INCLUDES

  • Stainless steel tank with a capacity of 20 litres,
  • AK10 plastering gun with professional application,

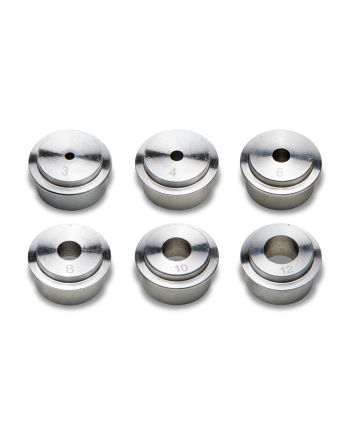

  • Set of five stainless steel nozzles with dimensions: 4, 6, 8, 10, 12 mm,
  • Spray gun for professional use,
  • Metal pressure regulator,
  • Length of technical hoses for the gun: 5 metres

More Information

More Information
For use professional
Tank capacity 20 litres
Working pressure 8 BAR

Product Showcase

TECHNICAL DETAILS

Tank comparison

  unit tank 19 litres unit tank 20 litres unit tank 60 litres unit tank 80 litres unit tank 110 litres
Capacity 30 kg  32 kg  90-120 kg 120-160 kg 170-220 kg
Maximum pressure 4,9 BAR 8 BAR 8 BAR 8 BAR 12,5 BAR
Shape of the bottom
Outlet diameter 1" 1" 1,5" 1,5" 1,5"
Outlet material brass stainless steel stainless steel stainless steel stainless steel
Maximum material feed range 10 m 15 m 15 m 15 m 15 m
Diameter of the filling opening 9,8 cm 9,8 cm 21 cm 24 cm 24 cm
Wheel diameter 17 cm 17 cm 19 cm 19 cm 19 cm
Wheel lock not yes yes yes yes
Tank dimensions with wheels 22 x 65 cm 20 x 70 cm 36 x 80 cm 40 x 95 cm 48 x 100 cm

Plaster guns - comparison



  amateur plasterer semi-professional plasterer professional plasterer industrial plasterer
Use of amateur plasterer semi-professional plasterer professional plasterer industrial plasterer
Spray width 20 cm 30 cm 40 cm 50 cm
Performance 100% 150% 250% 350%
Air lock when the gun trigger is released not not yes yes
Interchangeable firing pin not yes yes yes
Firing pin material brass brass stainless steel stainless steel
Nozzle size (mm) 4, 6, 8 4, 6, 8 4, 6, 8, 10, 12

4, 6, 8, 10, 12

4, 6, 8 AIR PRO

Nozzle material nickel-plated steel nickel-plated steel stainless steel stainless steel
Flat jet nozzle possible not not not not

paint guns - comparison



  amateur paint gun semi-professional paint gun professional paint gun Industrial paint gun
Use of amateur semi-professional professional Industrial
Spray width 20 cm 40 cm 50 cm 55 cm
Spray width adjustment not yes yes yes
Air flow control not yes yes yes
Firing pin material brass stainless steel stainless steel stainless steel
Interchangeable nozzle not not yes - 1,3 mm yes - 3,0 mm
Interchangeable firing pin not yes yes - 1,3 mm yes - 3,0 mm
Dusting large Medium small negligible
Atomisation small Medium large very large
