EAN code: 5903672752619

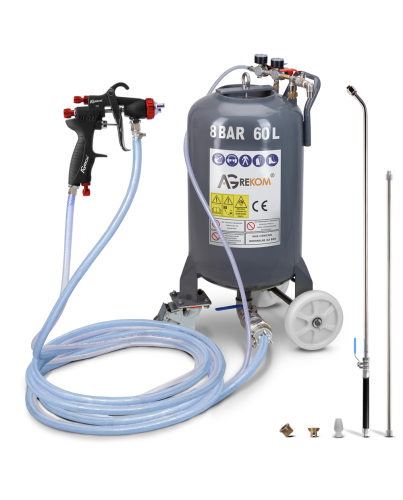

Industrial 60 l paint spray unit PLUS

In stock

Product Details


Professional unit for spray painting.

The paint machine is equipped with an industrial spray gun, which allows the paint to be sprayed with a large spray width and excellent dispersion. This ensures that the wall is accurately and quickly covered with paint. The industrial spray gun is a new design which guarantees ease of use and minimised dust thanks to its innovative construction.

The lance included in the set allows low-density substances to be sprayed.

An appropriately sized tank and specialised paint gun make it possible to carry out work on very large projects. The wide paint stream ensures rapid coverage of the painted surface.

The set includes hoses that allow for work at a distance of 10 metres away from the tank.




  • Spray painting of large surfaces
  • Priming walls
  • Impregnation
  • Whitewashing
  • Spraying

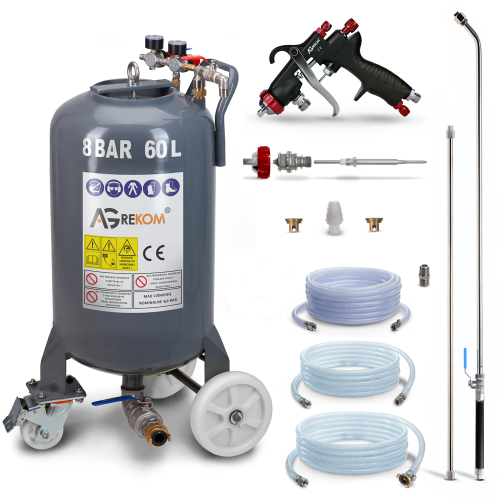

  • 60-litre tank
  • Industrial gun for spray painting
  • Additional 3,0 mm spray gun for emulsions
  • Lance with extension cord (Total length 155 cm, length of extension alone 65 cm)
  • 2 flatstream nozzles for whitewashing with limewash, 1 swirl nozzle for spraying
  • Metal regulator
  • Range of paint gun: 10 metres

More Information

More Information
For use Industrial
Tank capacity 60 litres
Working pressure 8 BAR

Product Showcase


Tank comparison

  unit tank 19 litres unit tank 20 litres unit tank 60 litres unit tank 80 litres unit tank 110 litres
Capacity 30 kg  32 kg  90-120 kg 120-160 kg 170-220 kg
Maximum pressure 4,9 BAR 8 BAR 8 BAR 8 BAR 12,5 BAR
Shape of the bottom
Outlet diameter 1" 1" 1,5" 1,5" 1,5"
Outlet material brass stainless steel stainless steel stainless steel stainless steel
Maximum material feed range 10 m 15 m 15 m 15 m 15 m
Diameter of the filling opening 9,8 cm 9,8 cm 21 cm 24 cm 24 cm
Wheel diameter 17 cm 17 cm 19 cm 19 cm 19 cm
Wheel lock not yes yes yes yes
Tank dimensions with wheels 22 x 65 cm 20 x 70 cm 36 x 80 cm 40 x 95 cm 48 x 100 cm

paint guns - comparison


  amateur paint gun semi-professional paint gun professional paint gun Industrial paint gun
Use of amateur semi-professional professional Industrial
Spray width 20 cm 40 cm 50 cm 55 cm
Spray width adjustment not yes yes yes
Air flow control not yes yes yes
Firing pin material brass stainless steel stainless steel stainless steel
Interchangeable nozzle not not yes - 1,3 mm yes - 3,0 mm
Interchangeable firing pin not yes yes - 1,3 mm yes - 3,0 mm
Dusting large Medium small negligible
Atomisation small Medium large very large
