COMPRESSORS

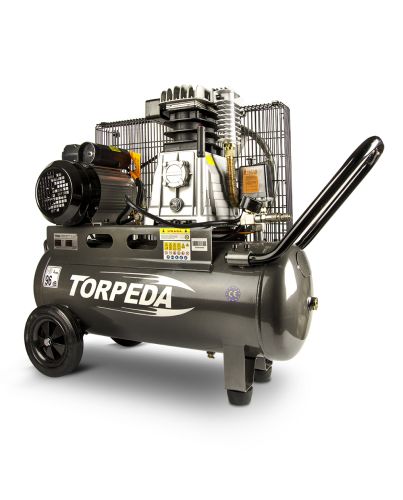

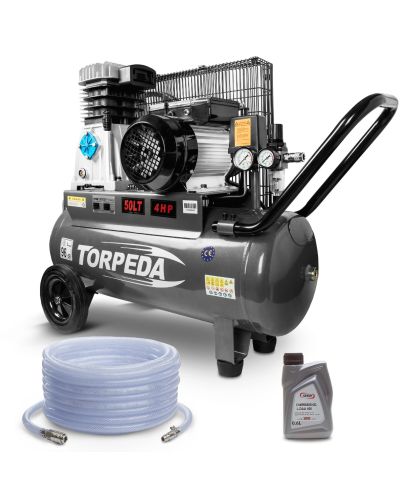

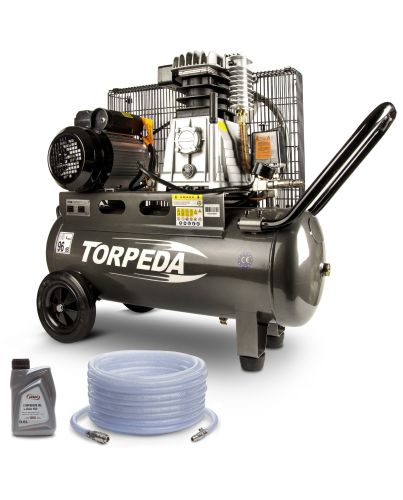

The Torpeda compressor with a 3 kW induction motor is equipped with 2 pistons and a 50-liter tank.
The compressor is made from the highest quality components.
The device is suitable for continuous operation.
It is an excellent solution for powering pneumatic plastering and painting machines

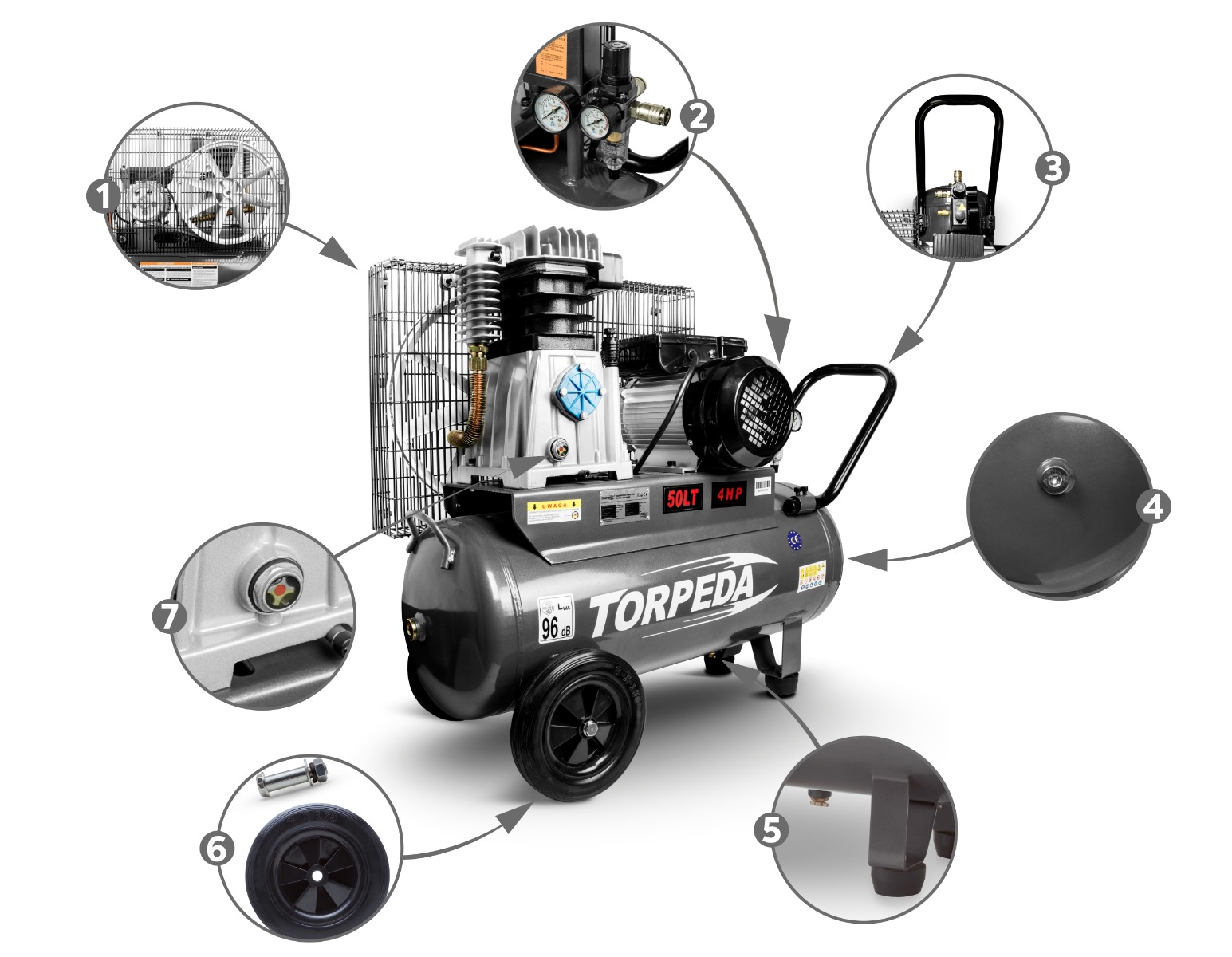

1. The belt wheel allows for easy adjustment of the compressor's performance and pressure by enabling the exchange of wheels with different diameters, which facilitates obtaining various gear ratios. Additionally, it provides quick access to key components, making servicing easier and increasing the device's reliability.
2. Independent connections for connecting various devices with a pressure gauge. The connections allow for the simultaneous connection of two tools.
3. A comfortable handle with an increased diameter. The larger diameter of the handle ensures even more convenient and secure transport.
4. A quick coupling on the tank allows for quick connection of the technical hose and provides a strong blast of air directly from the tank. Thanks to its durable material, it operates reliably even in harsh working conditions.
5. A practical oil indicator – you can quickly check if the compressor has the correct oil level, ensuring its reliable operation.
6. A drain valve designed for draining used oil.
7. Large wheels ensure easy transport of the compressor without the need for lifting, while durable rubber tires increase mobility and cushioning on various surfaces.
1. Powering pneumatic plastering machines for applying plasters, paints, and waterproofing.
2. Inflating tires in vehicles such as cars, motorcycles, and bicycles. Compressed air is also effective for inflating mattresses, pools, jacuzzis, and inflatable boats.
3. Using compressed air for blowing out small parts and hard-to-reach areas is an indispensable method for cleaning dust and removing debris from holes and gaps, such as grass clippings from mower components.
4. Powering pneumatic tools such as sanders, grease guns, grinders, and nailers.
TANK CAPACITY: 50 L
THEORETICAL FLOW RATE: 433 L/min
EFFECTIVE FLOW RATE:
Air delivery at 60 Psi: 387 L/min
Air delivery at 90 Psi: 375 L/min
WORKING PRESSURE (OUTPUT): 10 BAR
NOISE LEVEL: 96 dB
RATED POWER CONSUMPTION: 3 kW / 4 HP
NUMBER OF PISTONS: 2 pistons
PISTON DIAMETER: 65 MM
PISTON STROKE: 46 mm
FLYWHEEL DIAMETER: 350 MM
MOTOR PULLEY SIZE: 127 MM
WEIGHT: 66 kg
CERTIFICATE: Yes
DECLARATION OF CONFORMITY: Yes
SPEED: 1,030 rpm
Has reCAPTCHA | No |
---|---|
Size of the compressor tank | 50 litres |
Compressor operating pressure | 10 BAR |
Engine power | 3,0 kW |
Compressor motor winding | Copper |
