PLASTER SPRAY UNITS

Industrial plastering set AK10 PRO GOLD - 60 litres

As low as £1,317.00
Length of technical hoses
5 metres
10 metres
15 metres
In stock

Product Details

Description

A plastering unit suitable for spraying thick plasters and paints. The set includes professional guns for perfect coverage of the wall with structural plaster, gypsum plaster or emulsion paint.

The set includes the innovative AK10 PRO plaster gun, which allows dense plaster compounds to be sprayed with maximum efficiency. The fine-tuned air delivery system of the gun ensures perfect dispersion of the plaster grain and an even spray. AIR PRO nozzles allow dense materials to be sprayed without dilution.
The gun has a function of blocking the outflowing material and air with the trigger. This eliminates the risk of unwanted thickening (blobs) on the wall.

The set also includes a paint gun for high-intensity work. The hoses included in the set are tailored to transport dense emulsion paints.

Both the paint gun and the plaster gun have infinitely adjustable spray patterns.

The whole set has been designed on the basis of a 60-litre tank, which allows as much as 120 kg of compound to be easily transported. The tank allows for an operating pressure of 8 BAR. Its conical bottom allows the material to flow easily into the lower outlet.








APPLICATION

  • Spray application of structural plasters (facade plasters like sand textured, mineral, silicone, silicate, and acrylic plasters)
  • Spraying of gypsum plaster finish (flat stream)
  • Wall spackling (rendering)
  • Spraying glue onto mesh when insulating
  • Spray painting (also with dense emulsions)
  • Priming walls
  • Applying liquid wallpaper
  • Spraying of fire retardants
  • Impregnation

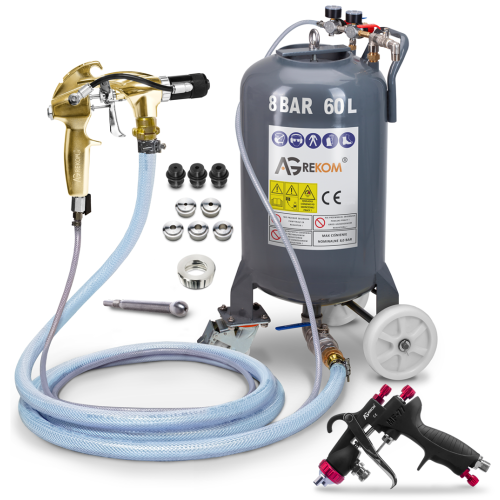

THE SET INCLUDES:

  • 60 L tank
  • AK10 PRO plaster spray gun for industrial use,
  • set of nozzles 4, 6, 8, 10, 12 mm for the plastering gun,
  • AIR PRO 4, 6, 8 mm nozzle set for plastering gun,
  • industrial spray gun,
  • double metal pressure regulator,
  • Technical hoses in lengths of 5, 10 or 15 metres (customer's choice). The 10 and 15 metre-long technical hoses are sold in two sections. On request, the hose can be in one piece.

More Information

More Information
For use Industrial
Tank capacity 60 litres
Working pressure 8 BAR

Product Showcase

TECHNICAL DETAILS

Tank comparison

  unit tank 19 litres unit tank 20 litres unit tank 60 litres unit tank 80 litres unit tank 110 litres
Capacity 30 kg  32 kg  90-120 kg 120-160 kg 170-220 kg
Maximum pressure 4,9 BAR 8 BAR 8 BAR 8 BAR 12,5 BAR
Shape of the bottom
Outlet diameter 1" 1" 1,5" 1,5" 1,5"
Outlet material brass stainless steel stainless steel stainless steel stainless steel
Maximum material feed range 10 m 15 m 15 m 15 m 15 m
Diameter of the filling opening 9,8 cm 9,8 cm 21 cm 24 cm 24 cm
Wheel diameter 17 cm 17 cm 19 cm 19 cm 19 cm
Wheel lock not yes yes yes yes
Tank dimensions with wheels 22 x 65 cm 20 x 70 cm 36 x 80 cm 40 x 95 cm 48 x 100 cm

Plaster guns - comparison



  amateur plasterer semi-professional plasterer professional plasterer industrial plasterer
Use of amateur plasterer semi-professional plasterer professional plasterer industrial plasterer
Spray width 20 cm 30 cm 40 cm 50 cm
Performance 100% 150% 250% 350%
Air lock when the gun trigger is released not not yes yes
Interchangeable firing pin not yes yes yes
Firing pin material brass brass stainless steel stainless steel
Nozzle size (mm) 4, 6, 8 4, 6, 8 4, 6, 8, 10, 12

4, 6, 8, 10, 12

4, 6, 8 AIR PRO

Nozzle material nickel-plated steel nickel-plated steel stainless steel stainless steel
Flat jet nozzle possible not not not not

paint guns - comparison



  amateur paint gun semi-professional paint gun professional paint gun Industrial paint gun
Use of amateur semi-professional professional Industrial
Spray width 20 cm 40 cm 50 cm 55 cm
Spray width adjustment not yes yes yes
Air flow control not yes yes yes
Firing pin material brass stainless steel stainless steel stainless steel
Interchangeable nozzle not not yes - 1,3 mm yes - 3,0 mm
Interchangeable firing pin not yes yes - 1,3 mm yes - 3,0 mm
Dusting large Medium small negligible
Atomisation small Medium large very large
