EAN code: 5903672750967

PLASTER SPRAY UNITS

Professional plaster spray unit

As low as £643.00
Length of technical hoses
5 metres
10 metres
In stock

Product Details

Description

The plaster spray unit is designed for professional use. Works perfectly when doing intense plastering work, as well as spray painting of walls. The two spray guns included in the set allow for quick completion work like spray application of textured of facade structural plasters (e.g. sand textured facade plaster) and also spray painting. The spray guns have metal bodies and replaceable wearable elements such as needles and nozzles That guarantees long and fault-free use.

Thanks to that we have the possibility to do many jobs using just one piece of equipment. The whole equipment is adapted to work with materials that are both more and less dense.

The unit meets all the EU norms and has a certificate consistent with pressure and machine norms.






APPLICATION

  • Spray plastering (structural, mineral, silicone, silicate, acrylic, and SiSi plasters)
  • Spray painting walls (emulsion paints, undercoats)
  • Priming walls (also with primer contact)
  • Spray application of gypsum finish
  • Spray application of fire retardants
  • Applying hydroinsulation on foundations
  • Rendering
  • Spraying glue onto reinforcement mesh
  • Applying liquid wallpaper

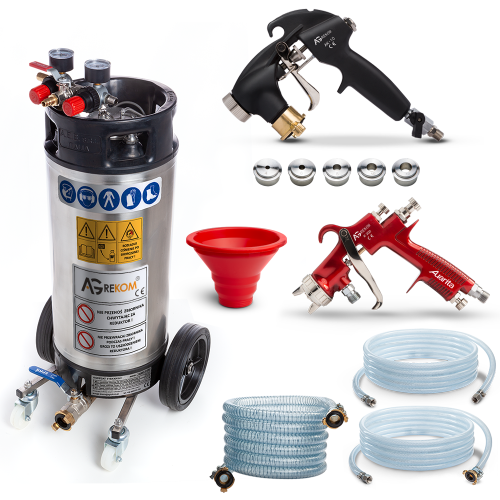

THE SET INCLUDES:

  • Stainless steel tank with a 19-litre capacity
  • AK10 plaster gun for professional use
  • Set of five stainless steel nozzles measuring 4, 6, 8, 10, and 12 mm
  • Spray paint gun for professional use
  • Metal pressure regulator
  • Technical hoses in lengths of 5 or 10 metres (customer's choice). The 10 and 15 metre-long technical hoses are sold in two sections. On request, the hose can be in one piece.



More Information

More Information
For use professional
Tank capacity 19 litres
Working pressure 4,9 BAR

Product Showcase

TECHNICAL DETAILS

Tank comparison

  unit tank 19 litres unit tank 20 litres unit tank 60 litres unit tank 80 litres unit tank 110 litres
Capacity 30 kg  32 kg  90-120 kg 120-160 kg 170-220 kg
Maximum pressure 4,9 BAR 8 BAR 8 BAR 8 BAR 12,5 BAR
Shape of the bottom
Outlet diameter 1" 1" 1,5" 1,5" 1,5"
Outlet material brass stainless steel stainless steel stainless steel stainless steel
Maximum material feed range 10 m 15 m 15 m 15 m 15 m
Diameter of the filling opening 9,8 cm 9,8 cm 21 cm 24 cm 24 cm
Wheel diameter 17 cm 17 cm 19 cm 19 cm 19 cm
Wheel lock not yes yes yes yes
Tank dimensions with wheels 22 x 65 cm 20 x 70 cm 36 x 80 cm 40 x 95 cm 48 x 100 cm

Plaster guns - comparison



  amateur plasterer semi-professional plasterer professional plasterer industrial plasterer
Use of amateur plasterer semi-professional plasterer professional plasterer industrial plasterer
Spray width 20 cm 30 cm 40 cm 50 cm
Performance 100% 150% 250% 350%
Air lock when the gun trigger is released not not yes yes
Interchangeable firing pin not yes yes yes
Firing pin material brass brass stainless steel stainless steel
Nozzle size (mm) 4, 6, 8 4, 6, 8 4, 6, 8, 10, 12

4, 6, 8, 10, 12

4, 6, 8 AIR PRO

Nozzle material nickel-plated steel nickel-plated steel stainless steel stainless steel
Flat jet nozzle possible not not not not

paint guns - comparison



  amateur paint gun semi-professional paint gun professional paint gun Industrial paint gun
Use of amateur semi-professional professional Industrial
Spray width 20 cm 40 cm 50 cm 55 cm
Spray width adjustment not yes yes yes
Air flow control not yes yes yes
Firing pin material brass stainless steel stainless steel stainless steel
Interchangeable nozzle not not yes - 1,3 mm yes - 3,0 mm
Interchangeable firing pin not yes yes - 1,3 mm yes - 3,0 mm
Dusting large Medium small negligible
Atomisation small Medium large very large
